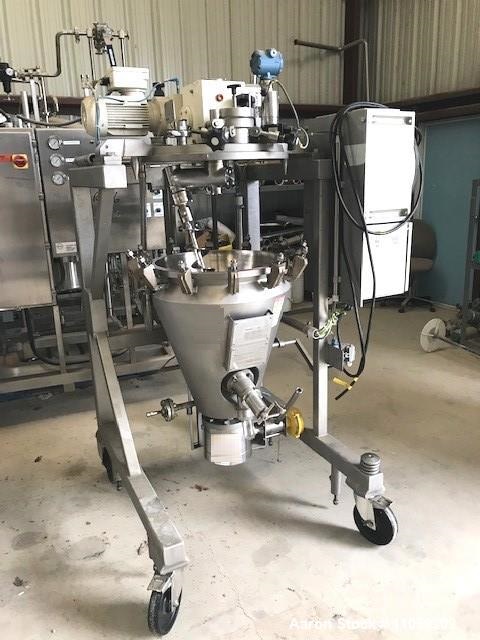

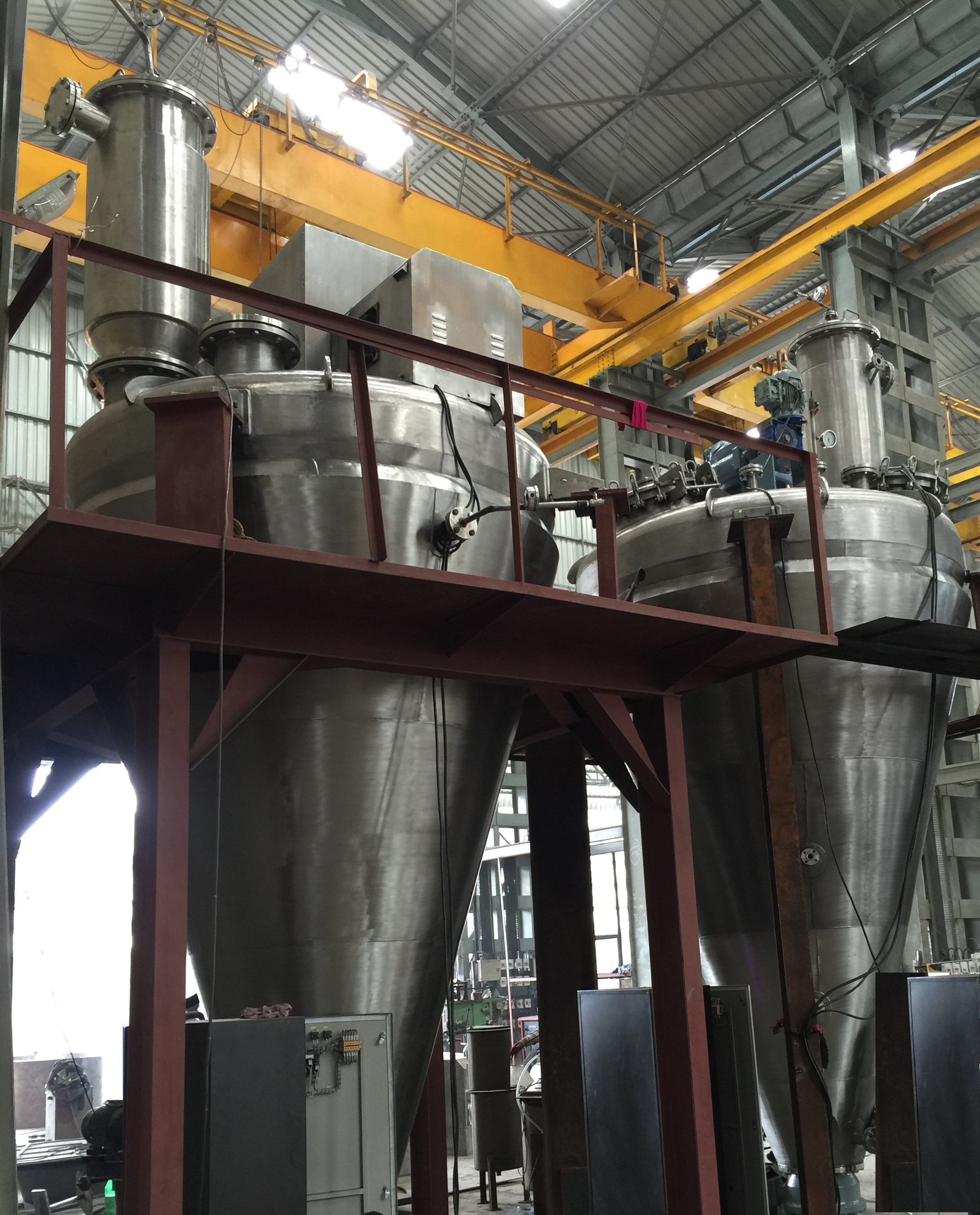

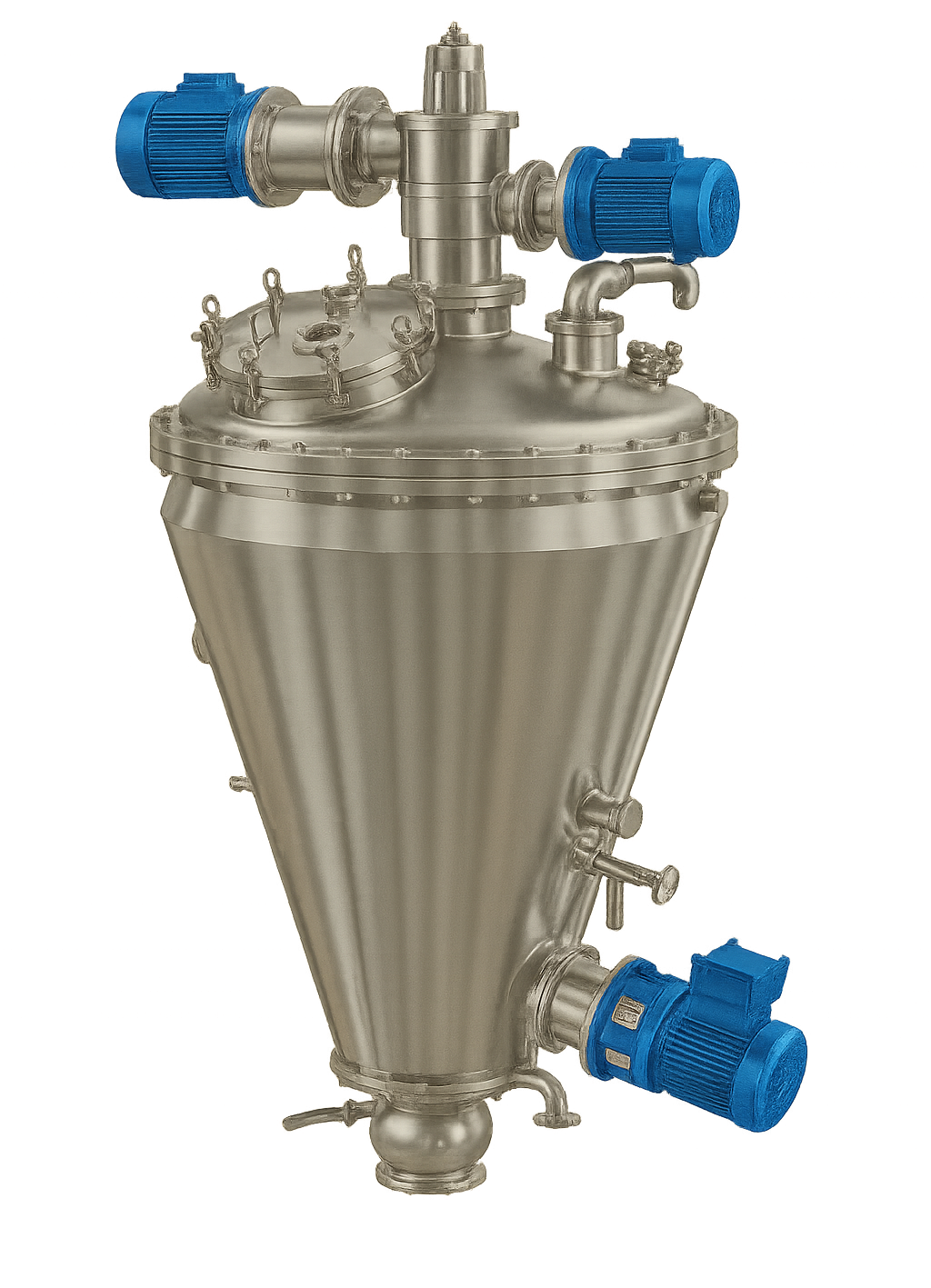

NAUTA TYPE DRYER / CONE MIXER DRYER (CMD)
A CMD is a specialized high intensity mixer mostly used in Dyes and Pharma API industries. With an additional conical shell jacketing or limpetting and vacuum application it serves as a very good mixer cum dryer for uniform drying of wet cake products.
This equipment has 3-dimensional mixing by virtue of the screw rotating around itself and orbiting around the central axis with help of the arm. This cyclonic motion gives very good mixing of the contents in the equipment. Also, the material is shuffled gently as only a limited portion is agitated as a given time.
This equipment is very widely used in drying process of various Chemicals, Specialty Chemicals, Fine Chemicals, Agro Chemicals, Pesticides, Insecticides, Dyes and Intermediates, Pharmaceutical and API’s and even Sterile API’s, Food industries.
It can be provided in GMP, Non-GMP constructions.
- 10 Lits to 5000 Lits (Hanging type screw)
- 3000 Lits to 15000 Lits (Bottom pintle two side supported screw)
Variety in construction
Design Options

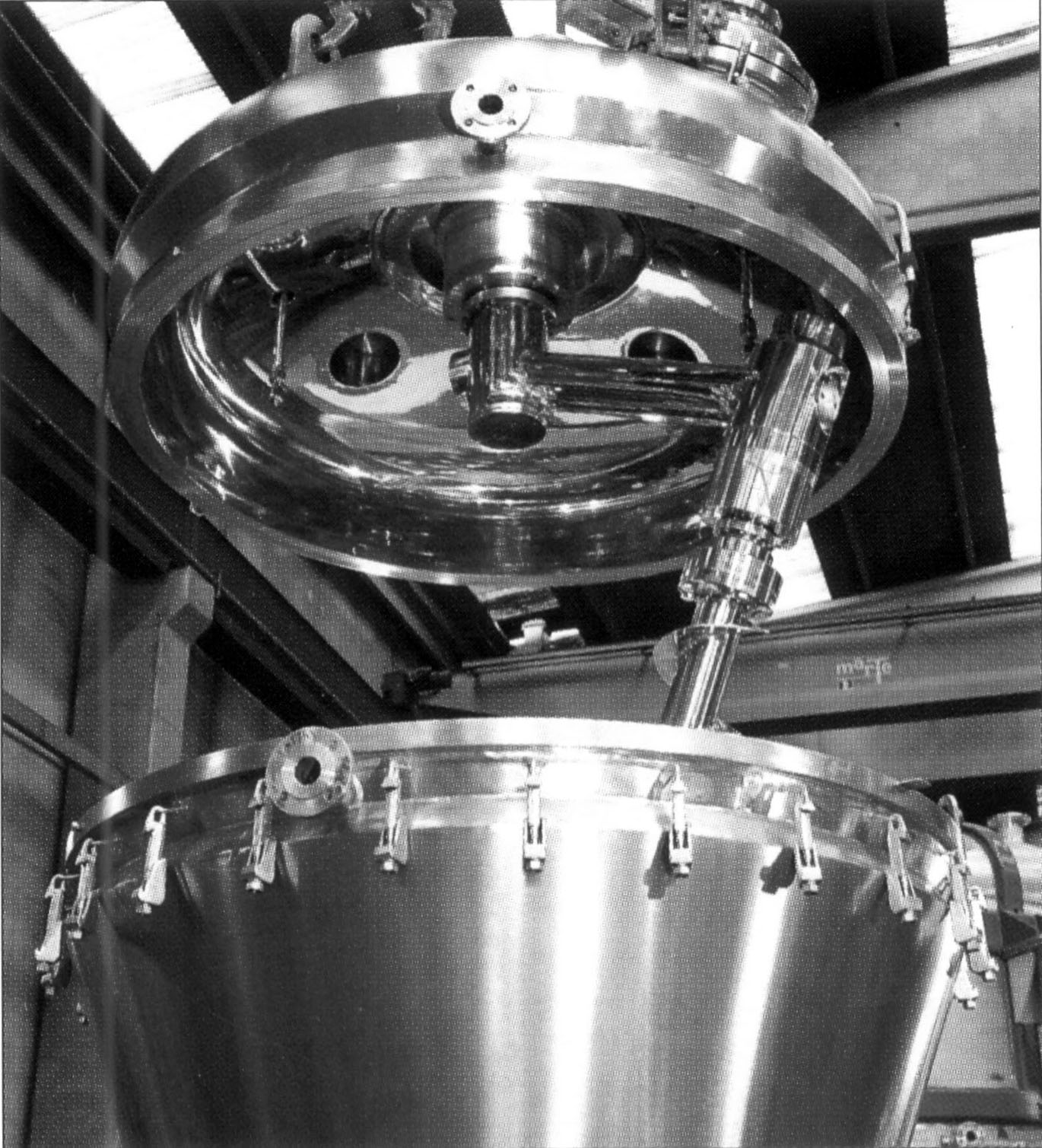

- Hanging screw or bottom pintle supported screw design
- Dished Top end or Flat Top end design
- Retractable bottom cone design
- With integrated lump breakers
- With integrated pneumatic actuated charging and discharging valves
Shaft Sealing Variety
- Single or Double stuffing box
- Single Dry or Double Dry Mechanical seal
- Double Dry seal with gas barrier system at arm
- Double Wet seal with liquid barrier system at arm
Salient Features
Material of Construction (MOC):
Stainless steel (SS316L, SS316, SS304), Hastelloy (C-276, C-22), Monel, Titanium etc.
